@XS-BOX M With external adapters
@XS-BOX M With external adapters
The @XS-BOX M with external adaptors is designed to be installed in single-family units as a termination box inside the building.
- Aginode ref: @XS-BOX M
Description
Description
Standards
Termination and retention
Supports termination and retention of a microduct (up to Ø10mm), entering from the bottom of the housing. Gas block not included.
Cable management

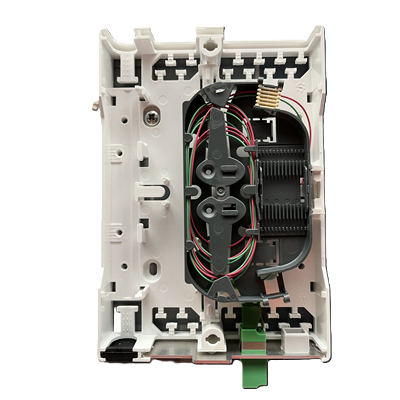

The cable blown into the microduct is spliced to one or two pigtails supplied with the box, using the integrated splice tray. The tray has capacity for up to 12 splices with ANT protectors.
Fiber Allocation

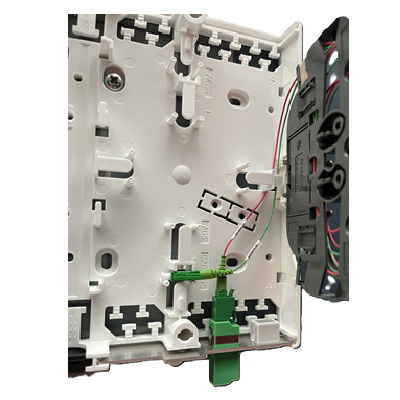

Fibre 1: Pre-connected to the back of the patch panel via a 0dB attenuator.
Fibre 2: Reserved and stored for future expansion.
Patch Panel Access
The patch panel is accessible externally, allowing jumper connection without opening the box.
Characteristics
Characteristics
Resources
Resources
Unit packaging in paper bag
