LANmark WDZ-RYY CU/LSZH/LSZH Flame Retardant Flexible Cable
LANmark WDZ-RYY CU/LSZH/LSZH Flame Retardant Flexible Cable
The LANmark Series of Low-voltage cables are specialized cables designed for communication, signal transmission and low-voltage power supply of security equipment.
They are widely deployed in public security, monitoring projects, commercial buildings, residential buildings, smart homes and intelligent building systems.
Description
Description
Standards
Characteristic
• Copper Class 5
• Insulation of polyolefin
• LSZH jacket
• Nominal Voltage: U0/U=300/300V (Cross section ≤0.5mm²)
U0/U=300/500V (Cross section≥0.75mm²)
• Temperature range:operation: -20℃ ~ 70℃
installation: 0℃ ~ 50℃
Core No. | |
2 | Blue, Red |
3 | Blue, Red, Yellow/Green or Blue, Red, Green |
4 | Blue, Red, Green, Yellow/Green or Blue, Red, Green,Yellow |
5 | Blue, Red, Green,Yellow, Yellow/Green or Blue, Red, Green,Yellow, Black |
6 | Blue, Red, Green,Yellow, Black, Yellow/Green or Blue, Red, Green,Yellow, Black, Brown |
7 | Yellow jacket with number except Yellow/Green core. |
Note: When there is a yellow/green ground wire in the core combination, the N-cord needs to add the suffix "G". The cross section will be using "G" to replace "x".

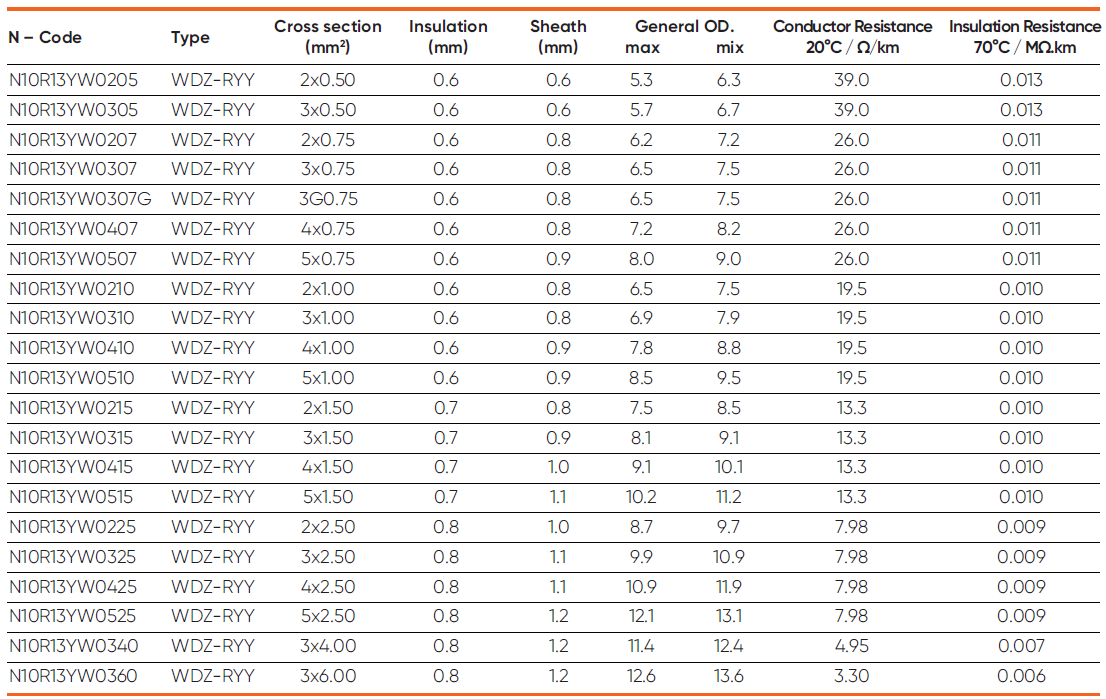

Technical data
Note: When there is a yellow/green ground wire in the core combination, the N-cord needs to add the suffix "G". The cross section will be using "G" to replace "x".
